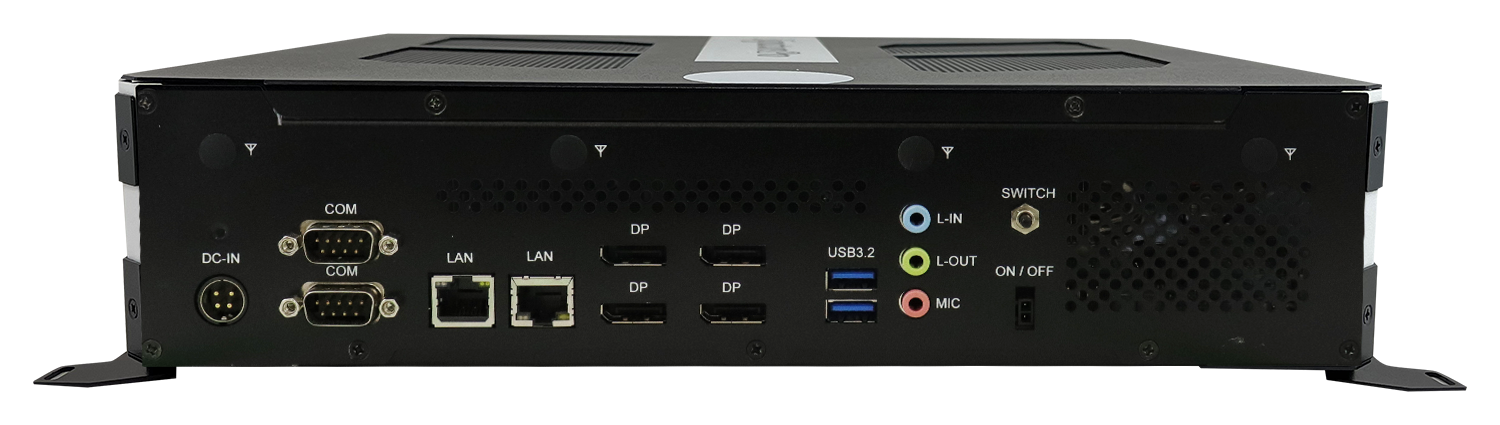

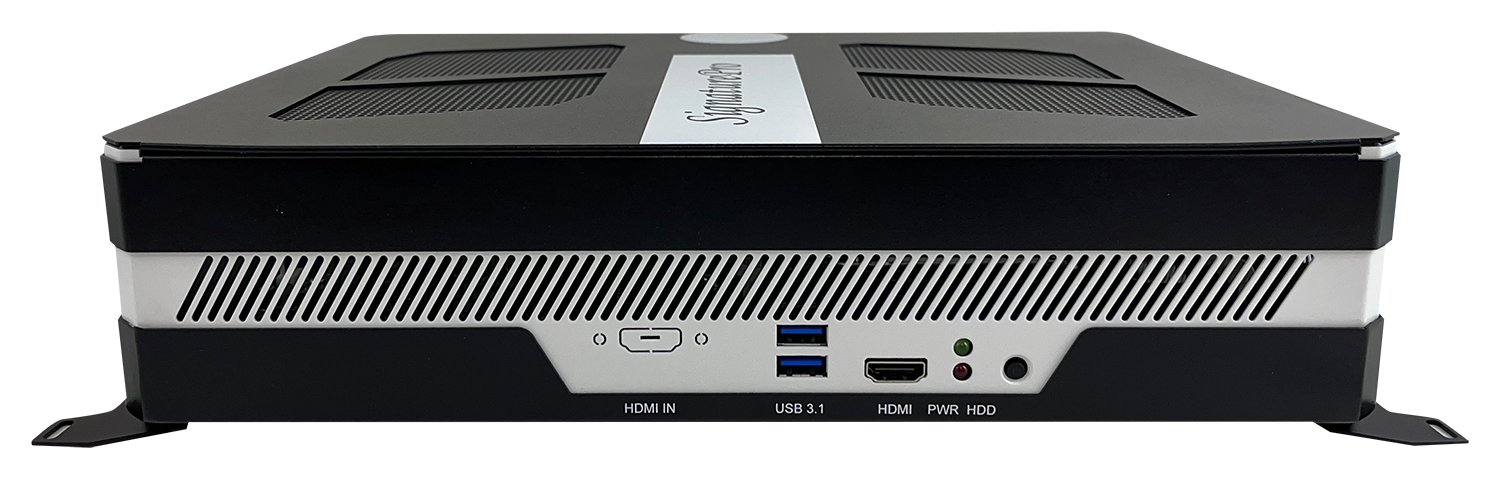

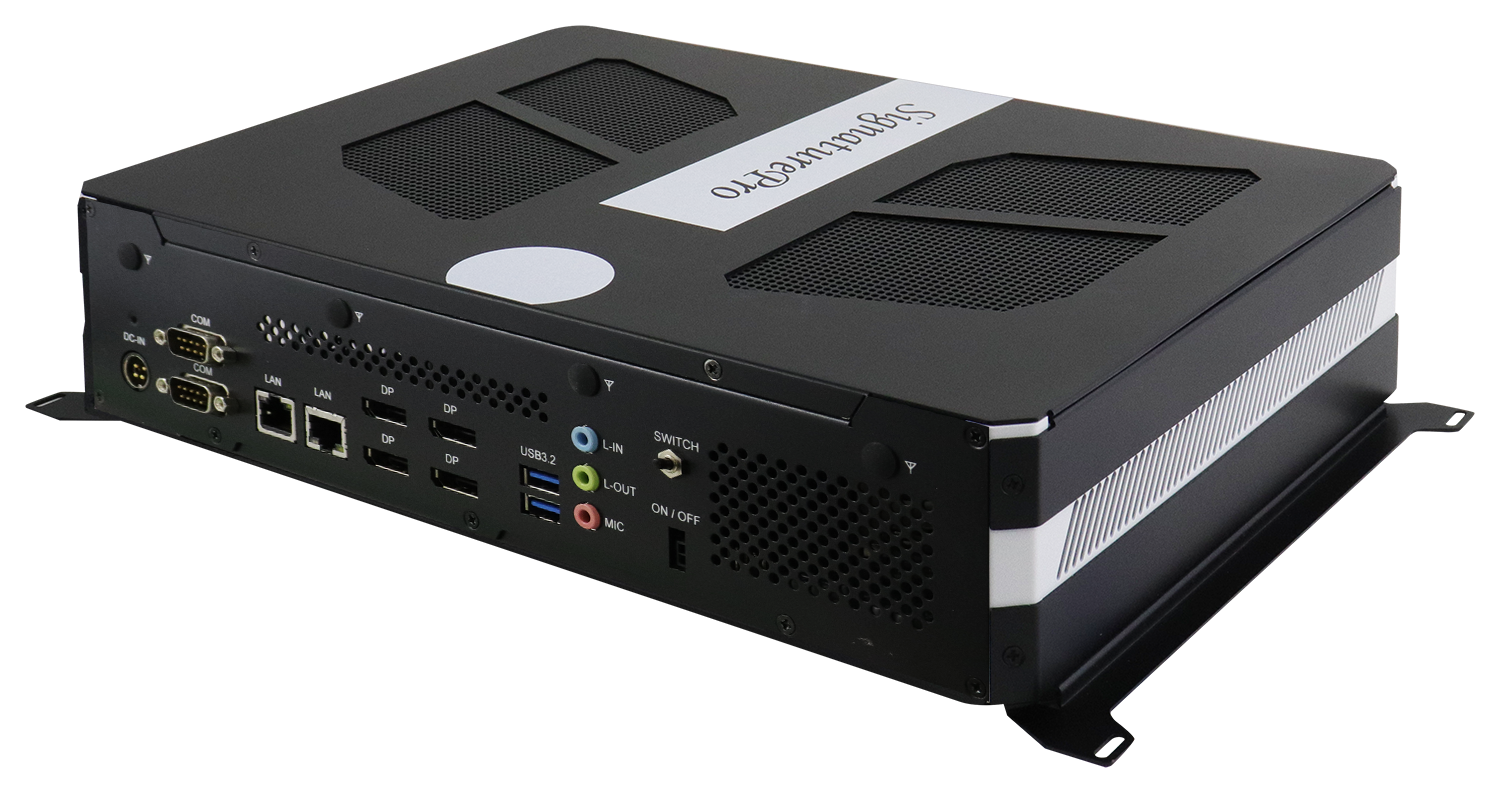

Video Wall Signage Player
SI-624
iSMART intelligent energy-saving & Observer remote monitoring technologies
13th/12th Gen Intel® Core™ i7/i5/i3 Pentium® / Celeron® QC/DCprocessors
4x DDR4-3200 U-DIMM, Max. 128GB
1x HDMI 1.4 for console, 4x DisplayPort
1x M.2 E-Key (2230) for Wi-Fi, Bluetooth or capture card options
1x M.2 B-Key (3052), for 5G modules
2x M.2 NVMe SSD bays
Supports OOB function via I210 LAN port (optional)
Supports TPM 2.0
Compact and rugged industrial design

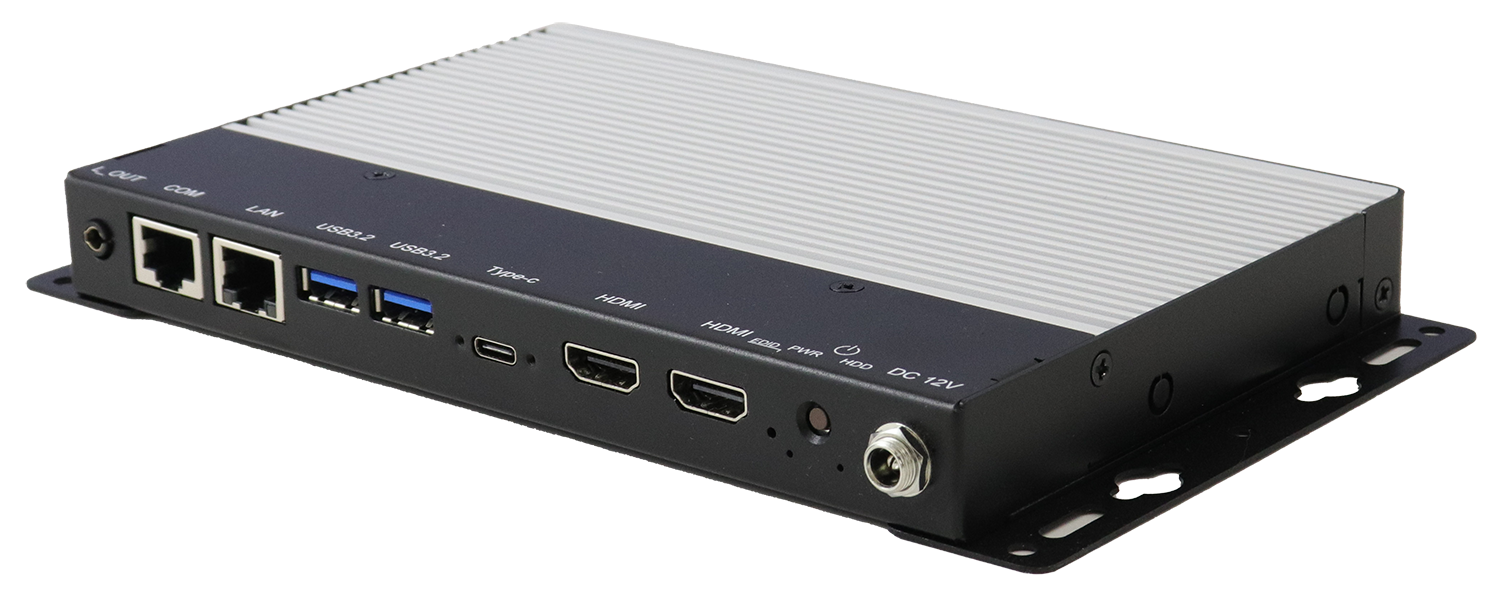

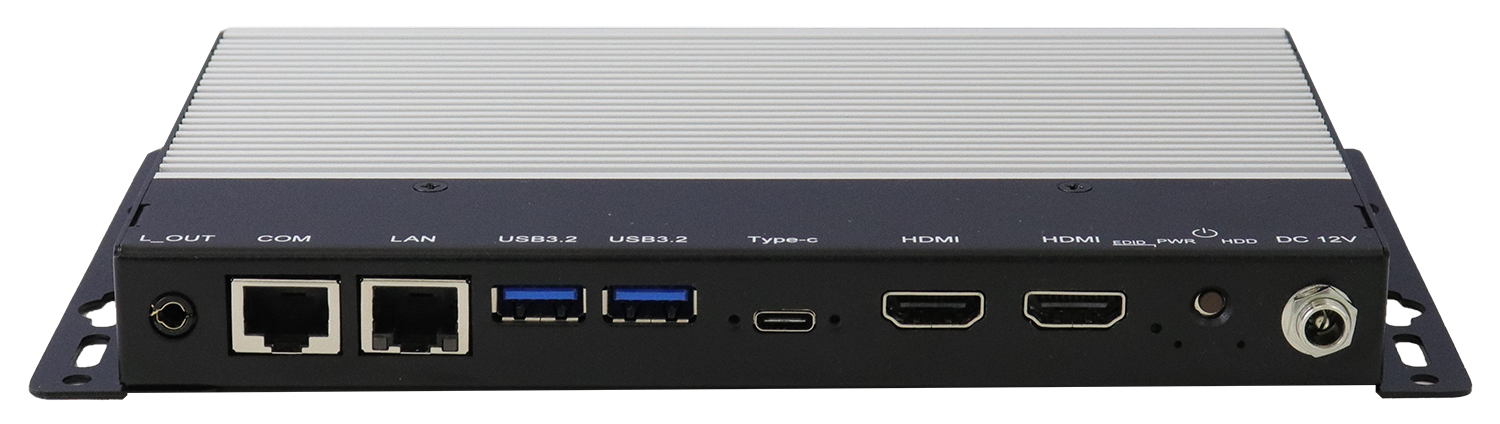

Compact Digital Signage Player
SI-212-N
iSMART intelligent energy-saving technology – enables power on/off scheduling and power resume functions
Intel® Atom® x7000E & x7000RE Series / N-series / Core™ i3-N305 processors (formerly Alder Lake-N)
1x DDR5-5600 SO-DIMM, dual channel, Max. 16GB (Max data rate DDR5-4800)
2x HDMI 2.0 with independent audio output
Built-in CEC and hardware EDID emulation functions with software setting mode
Supports PDPC (Peripheral Device Power Control) function
Supports OOB function via I210IT LAN port (optional)
1x M.2 E-Key (2230) for WiFi, Bluetooth options
1x M.2 M-Key (2280) for storage
TPM 2.0 and watchdog timer
Industrial-grade robust and compact fanless design

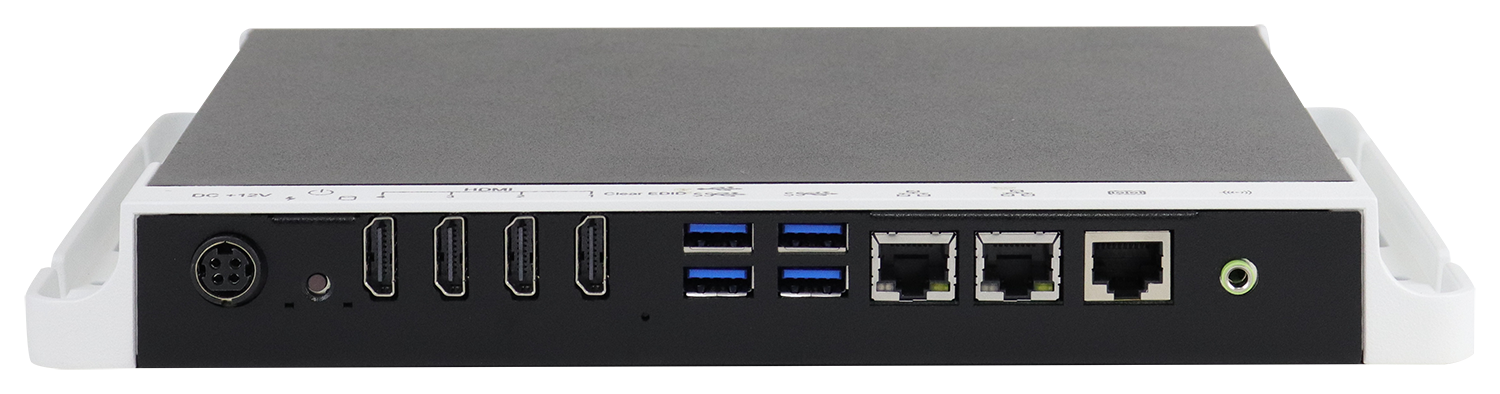

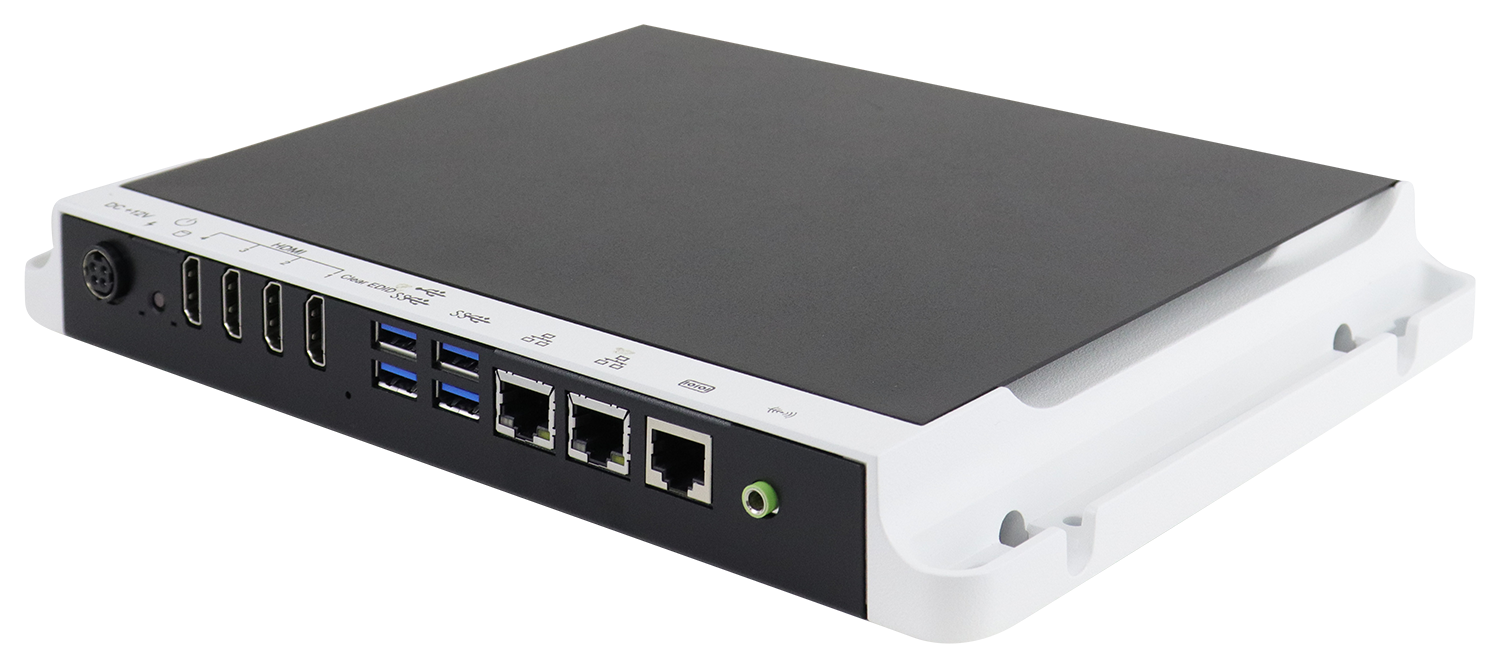

4x HDMI Digital Signage Player
SI-344
AMD Ryzen Embedded 8000 series Processors
Radeon RDNA 3 Graphics and XDNA Neural Processing Unit
4x HDMI with independent audio output support
iSMART intelligent energy-saving & Observer remote monitoring technologies
Built-in CEC and hardware EDID emulation functions with the software setting mode
2x DDR5-5600 SO-DIMM, dual channel, Max. 128GB
1x M.2 B-Key for 5G or LTE options
1x M.2 E-Key for Wi-Fi, Bluetooth or capture card options
1x M.2 M-Key for storage
Supports TPM 2.0 and watchdog timer
Slim and segregated flow ventilation design
